These pads are for patients who are over 55 lbs and are compatible with the Philips HeartStart Onsite AEDs.

This cartridge includes 1 set of electrode pads featuring the built in Philips “pull handle”.

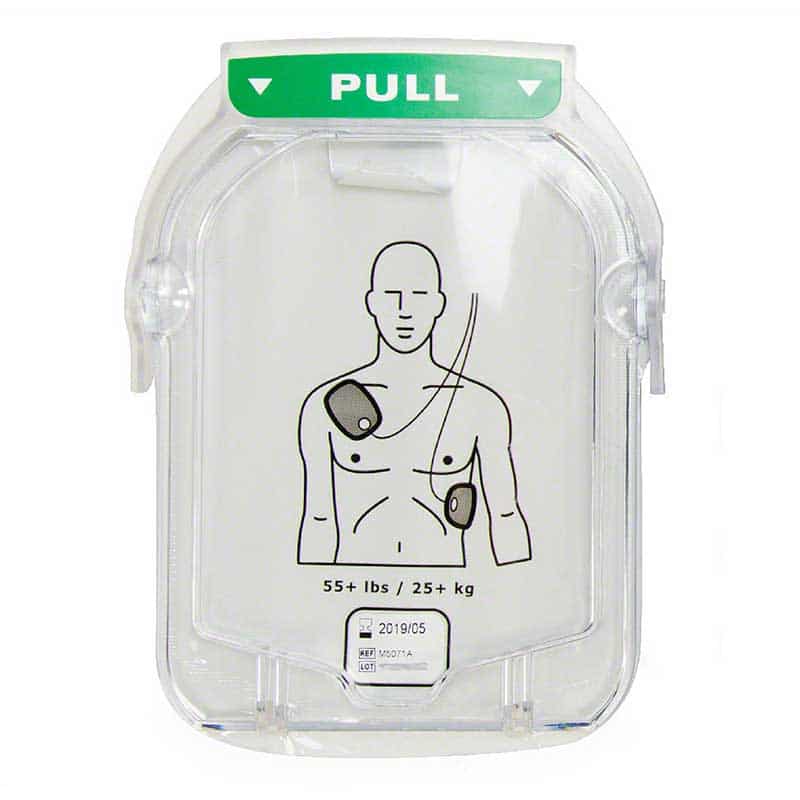

This Adult Replacement SMART Electrode Pads Cartridge functions with the Philips HeartStart OnSite AED and HeartStart Home AED and uses the Philips’ easy-to-use cartridge system. Each cartridge stores one set of electrode pads behind its clear plastic cover. The cartridge features the patented Philips “pull handle”, easy access, handle built in.

Changing the electrode pads for your Philips HeartStart OnSite or Home AED is easy. Just follow these 3 simple steps:
Slide the release latch at the top of the AED to the right to release it from the AED unit.
Remove the wrapper from the new cartridge and place the bottom of the cartridge into the bottom of the cartridge compartment on the front of the AED.
Press the top of the cartridge down so it snaps into place.
The Philips SMART adult electrode pads supply a nominal 150 joules into a 50-ohm load. Active surface area is 13 square inches (85 square centimeters) per pad, and the cable length is 54 inches (85 centimeters).

These replacement electrode pads are intended for adults (anyone over 55 lbs. and older than 8 years of age). If you’re looking to replace HeartStart OnSite electrode pads for use in a pediatric setting for children and infants (under 8 years or less than 55 lbs.), FC Safety also offers the Philips Infant/Child Cartridge Electrode Pads.

Buying replacement electrode pads for your Philips AED? Now is the time to check the status and expiration date of your battery pack!

Expiration: Note that electrode pads for the Philips HeartStart Home and OnSite AED units must be replaced after use or by the indicated expiration date. Check the expiration date which is located in the white box underneath the diagram that shows where to place the electrode pads during use.

For use with the following Philips AED units: M5066A, M5068A, HS1

Cable length is 54 inches.
